32180 MINI-Z AWD MA-030EVO Chassis Set (8500KV/DWS included)
- MA-030 AWD chassis is based on MINI-Z FWD MA-03F chassis.
- Chassis set comes with separate ESC and receiver unit.
- Includes KYOSHO SPEED HOUSE 85 brushless motor (KV8500).
- Optional I.C.S manager enables precise setting control and use of either brushless or brushed motor.
- Independent CPU control with increased processing speed delivers even more precise control.
- Full ball bearing specifications reduces drive loss.
- Includes rear double wishbone suspension conversion. (DWS)
- Compatible with L (94mm) and LL (98mm) wheelbases.
- Only LL (98mm) can be used with rear double wishbone suspension set.
- Compatible with optional parts for the various MR-03F chassis models

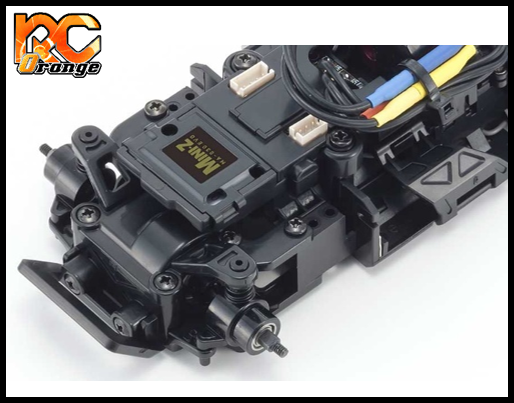

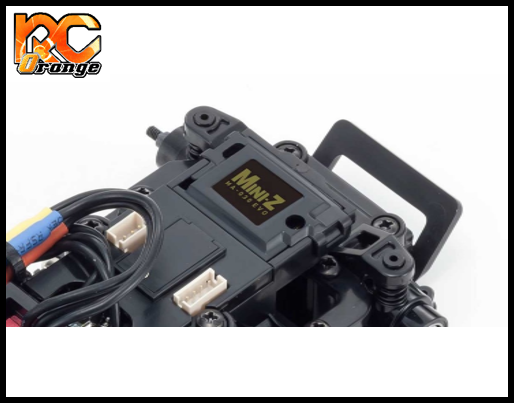

Remove the upper cover of the receiver on top of the chassis to install the receiver units compatible with KYOSHO, KO, FUTABA, and Flysky transmitters.
Featuring high-performance VCS front suspension adopted from the previous models. Settings can be adjusted without using any tools just by replacing coil springs.
Rear suspension includes the same strut type unit as the MA-03F chassis. Settings can be changed with toe control rods and cambered knuckles according to conditions.

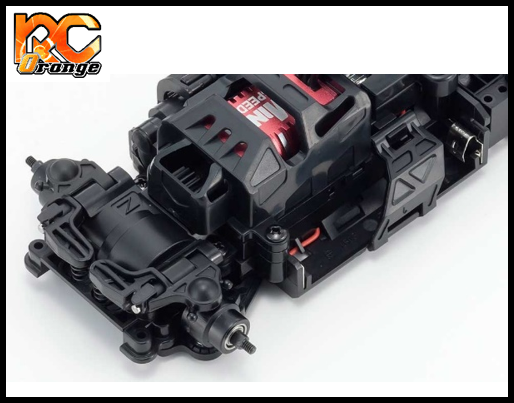

New Kyosho Speed House brushless XSPEED 85 (8500KV) motor features a one piece aluminum case that delivers efficient heat dissipation.
| Kit Contents|
Assembled chassis with EVO main unit installed
Pinion gear (15T, 17T, 19T, 21T)
DWS conversion parts
Front width conversion parts
Spare wheel nuts and wrench
Center shaft for L wheelbase
Wide rear sus arms for DWS
Long swing shafts
Spur gears (27T, 29T, 31T)
- MINI-Z EVO receiver unit compatible with the transmitter used
- Auto Scale Collection (body, wheels and tires)
- 8 x AAA batteries
- Scale: 1/27.6
- Length: 126.0mm
- Width: 65.0 – 76.0mm (adjustable by wheel offset)
- Height: 36.0mm
- Chassis Type: MA-030
- Wheelbase: 94.0mm (strut rear suspension installed), 98.0mm (factory assembled)
- Weight: 135g
- Motor: SpeedHouse Brushless 8500KV
- Gear Ratio: 7.2, 6.4, 6.0, 5.7, 5.3, 5.0, 4.5:1
