PN RACING – 500806 – RECEPETEUR – Micro récepteur 2.4Ghz 3Ch Compatible Spektrum DSM2

Compatible with Spektrum® DSM2 ® transmitters
(Trademark by Horizon Hobby, Inc.)

– Maximum input power 6Volt

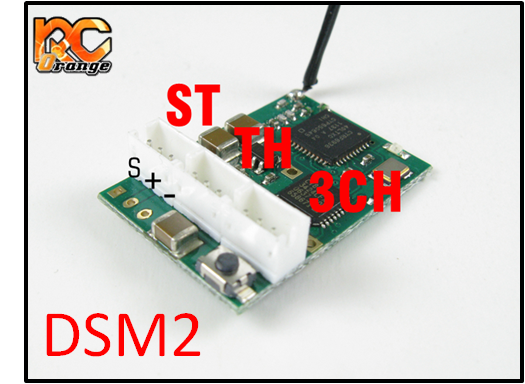

– 3 Channel available

Bind Transmitter to Receiver
1. Push and Hold the Bind switch, then power on
    the receiver and wait until the receiver LED
    begins flashing.
2. Power on the transmitter.
3. Select the Model Memory you wish to bind to.
4. Select Bind from the List menu.
5. Scroll to Bind and press the Rolling Selector.
    The orange LED flashes on top of the transmitter.
6. When the bind process is complete, the
    transmitter and receiver LEDs stop flashing and
    turn solid orange.

Highly recommend use Heat Shrink to protect the
receiver board.

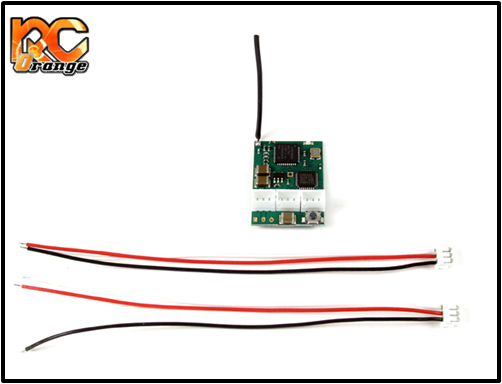

Comes with 2 JST plug
